Recover logical volumes data from deleted LVM partition

Have you ever deleted a logical volume by accident? Can you recover it looking into the backups? Well, the answer is YES. For those who are not familiar with Logical Volume Management (LVM) is a device mapper target that provides logical volume management for the Linux kernel.- WikipediaIt is an abstraction layer or software that has been placed on top of your hard drive for flexible manipulation of the disk space. Some of the articles published in the past on LVM are:

All test carried out on this blog post have been tested on a CentOS machine. Please don't make a live test on a production server.

Image Credits: Redhat.com
Image Credits: Redhat.com

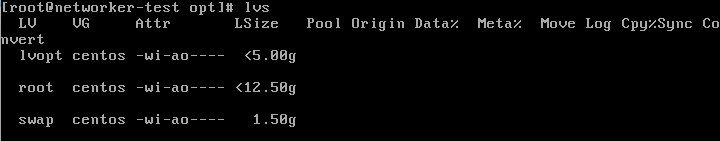

1. So, as you can see below I have an lv called lvopt which is from a vg called centos.

Recover logical volumes data from deleted LVM partition 1

2. Same is mounted on the /opt

Recover logical volumes data from deleted LVM partition 2

3. There are some data in that partition as well:

Recover logical volumes data from deleted LVM partition 3

4. I created a directory inside the /opt directory

Recover logical volumes data from deleted LVM partition 4

5. Now, let's pretend to remove the lvm lvopt. Or say, someone did it by accident because it was unmounted. The command lvremove will be used here to remove the lv. Note: that the lv need to be unmounted.

Recover logical volumes data from deleted LVM partition 5

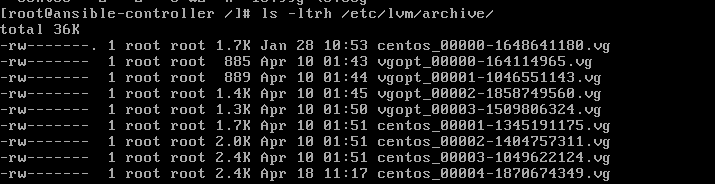

6. If you make an lvs, lvdisplay or vgs or even mount again the partition, you cannot do it. The data is lost. But you can still recover it. This is because the lvm contains the archive of your lv inside the folder /etc/lvm/archive. But, you cannot read the files directly.

Recover logical volumes data from deleted LVM partition 6

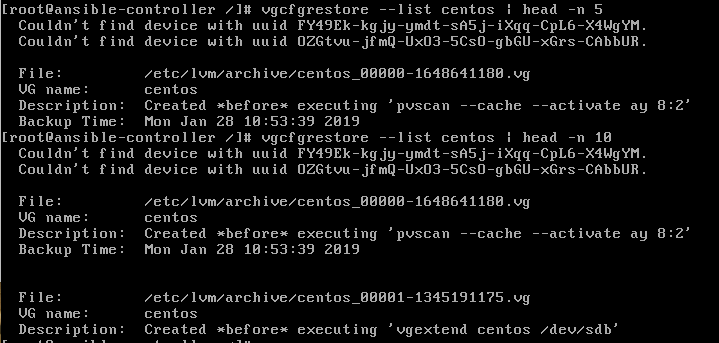

7. But you can still, interpret part of the files. Since we deleted the volume group called "centos", we knew that it is referenced in the file centos_... The question that arises here is which file is relevant for you. Right? So to understand which archive you want to restore, you need to use the command vgcfgrestore --list <name of volume group>. Here is an example:

Recover logical volumes data from deleted LVM partition 7

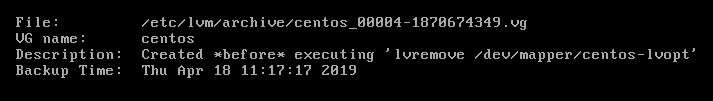

8.  If you observe carefully, each archive has been backup at a certain time. In my case, I deleted the LV on 18-Apr-2019 at 11:17:17 2019:

Recover logical volumes data from deleted LVM partition 8

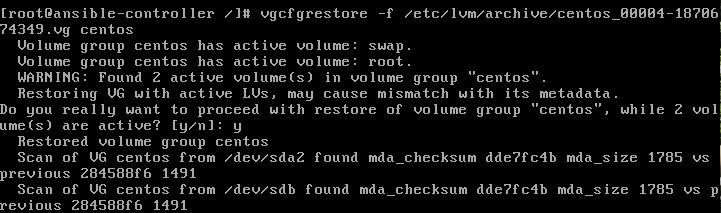

9. So, I want to restore from that last archive. You will need to copy the full patch of the vg file. In my case it is /etc/lvm/archive/centos_00004-1870674349.vg. The goal here is to restore the lv before this specific time, or simply restore back the lv before the command lvremove was fired. Here is the command:

Recover logical volumes data from deleted LVM partition 9

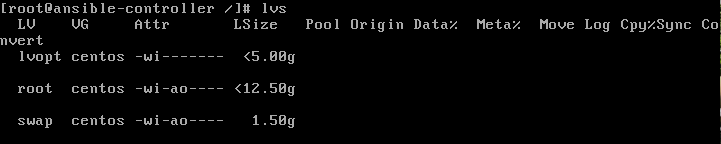

10. If you launch the command lvs, you will notice the presence of the lv.

Recover logical volumes data from deleted LVM partition 10

11. But, mounting back the lv won't result in anything. This is because the lv is inactive. You can see it with the command lvscan. Please take note below that the lvopt is inactive.

Recover logical volumes data from deleted LVM partition 11

12. To activate it you simply need to use the command lvchange.

Recover logical volumes data from deleted LVM partition 12

13. Mount it back and you are done.

Recover logical volumes data from deleted LVM partition 13

I believe this can be very useful especially when you have encountered a situation where someone deleted an lv. I hope you enjoy this blog post. Please share and comment below if you like it.
